PRODUCTS / INDUSTRIAL HOSE / VACUUM TRUCK HOSE / INDUSTRIAL VACUUM BOOM HOSE
APPLICATION
Industrial Vacuum Boom Hose

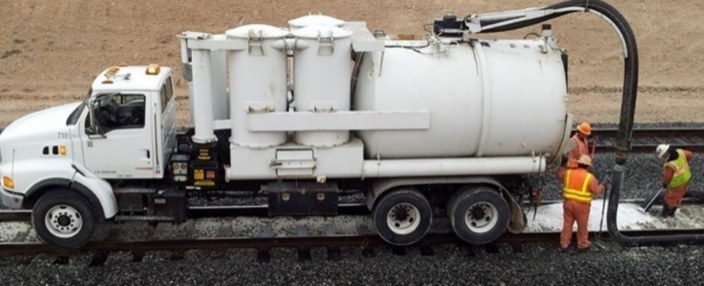

Mandrel-built bulk material suction and discharge hose for vac-truck booms: abrasive materials, slurries, sand, plastic granulate and mobile drilling rigs. The corrugated cover gives maximum flexibility; available with cuff ends.
CONSTRUCTION
Mandrel-built, helix and antistatic wire, corrugated cover
TUBE
Red NR smooth rubber, ¼" thick, high abrasion resistance
REINFORCEMENT
High-tensile textile plies, embedded helix wire, antistatic wire
COVER
Black corrugated rubber, weather and abrasion resistant
SPECIFICATION
Sizes & ordering data
 Part Number |  ID |  OD |  Working Pressure |  Burst Pressure |  Vacuum |  Bend Radius |  Weight |  Coil Length | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | PSI | bar | PSI | bar | in.Hg | in | mm | lb/ft | kg/m | ft | m | |
| IVRG-200-250 | 2" | 51 | 2.83 | 72 | 150 | 10 | 450 | 31 | 29 | 4 | 102 | 1 | 1.49 | 200 | 61 |
| IVRG-250-250 | 2½" | 64 | 3.31 | 84 | 150 | 10 | 450 | 31 | 29 | 5 | 127 | 1.4 | 2.08 | 200 | 61 |
| IVRG-300-250 | 3" | 76 | 3.86 | 98 | 150 | 10 | 450 | 31 | 29 | 6 | 152 | 1.8 | 2.68 | 200 | 61 |
| IVRG-350-250 | 3½" | 89 | 4.37 | 111 | 150 | 10 | 450 | 31 | 29 | 7 | 178 | 2 | 2.98 | 200 | 61 |
| IVRG-400-250 | 4" | 102 | 4.92 | 125 | 150 | 10 | 450 | 31 | 29 | 8 | 203 | 2.3 | 3.42 | 200 | 61 |
| IVRG-500-250 | 5" | 127 | 5.94 | 151 | 150 | 10 | 450 | 31 | 29 | 10 | 254 | 3 | 4.46 | 100 | 30.5 |
| IVRG-600-250 | 6" | 152 | 6.97 | 177 | 150 | 10 | 450 | 31 | 29 | 12 | 305 | 3.97 | 5.91 | 100 | 30.5 |
| IVRG-800-250 | 8" | 203 | 9.17 | 233 | 150 | 10 | 450 | 31 | 29 | 16 | 406 | 6.63 | 9.87 | 100 | 30.5 |
| IVRG-1000-250 | 10" | 254 | 11.11 | 282 | 150 | 10 | 450 | 31 | 29 | 30 | 762 | 14.1 | 20.98 | 20 | 6.1 |
Part Number | Nominal ID (Display) | OD (Inches) | Working Pressure (PSI) | Burst Pressure (PSI) | Bend Radius (Inches) | Weight (lbs/ft) | Standard Coil Length (ft) | Vacuum (in.Hg) |
|---|---|---|---|---|---|---|---|---|
IVRG-200-250 | 2" | 2.83 | 150 | 450 | 4 | 1 | 200 | 29 |
IVRG-250-250 | 2½" | 3.31 | 150 | 450 | 5 | 1.4 | 200 | 29 |
IVRG-300-250 | 3" | 3.86 | 150 | 450 | 6 | 1.8 | 200 | 29 |
IVRG-350-250 | 3½" | 4.37 | 150 | 450 | 7 | 2 | 200 | 29 |
IVRG-400-250 | 4" | 4.92 | 150 | 450 | 8 | 2.3 | 200 | 29 |
IVRG-500-250 | 5" | 5.94 | 150 | 450 | 10 | 3 | 100 | 29 |
IVRG-600-250 | 6" | 6.97 | 150 | 450 | 12 | 3.97 | 100 | 29 |
IVRG-800-250 | 8" | 9.17 | 150 | 450 | 16 | 6.63 | 100 | 29 |
IVRG-1000-250 | 10" | 11.11 | 150 | 450 | 30 | 14.1 | 20 | 29 |
