PRODUCTS / INDUSTRIAL HOSE / VACUUM TRUCK HOSE / DEBRIS COLLECTION BOOM & SWIPER HOSE
APPLICATION

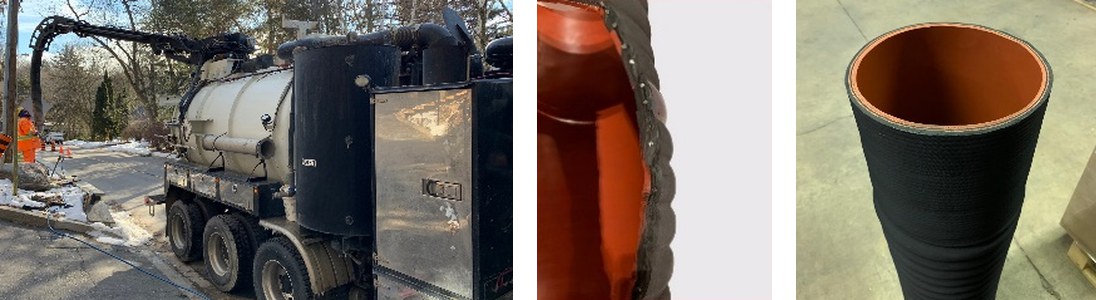

Debris Collection Boom & Swiper Hose
Heavy-duty corrugated-cover hose with a cuff at both ends and full vacuum, for vacuum-truck boom and swiper applications. A double-helix spring-steel wire encapsulated in wrapped rubber and polyester yarn makes a flexible, abrasion-resistant hose.
CONSTRUCTION
Double-helix steel-wire reinforced suction hose
TUBE
Red, yellow, tan or black smooth-surface rubber, 3/16″ or 1/4″ thick
REINFORCEMENT
Twin helix steel wire and polyester fabric
COVER
Corrugated black abrasion-resistant rubber
SPECIFICATION
Sizes & ordering data
 Part Number |  ID |  OD |  Working Pressure |  Burst Pressure |  Vacuum |  Bend Radius |  Weight |  Length | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | PSI | bar | PSI | bar | in.Hg | in | mm | lb/ft | kg/m | ||
| DB400-187-100 | 4" | 102 | 4.87 | 124 | 150 | 10 | 450 | 31 | 29 | 15 | 381 | 4.6 | 6.85 | 100 in (2.54 m) |
| DB600-250-100 | 6" | 152 | 6.7 | 170 | 150 | 10 | 450 | 31 | 29 | 22 | 559 | 5.4 | 8.04 | 100 in (2.54 m) |
| DB600-250-50 | 6" | 152 | 6.7 | 170 | 150 | 10 | 450 | 31 | 29 | 22 | 559 | 5.4 | 8.04 | 50 in (1.27 m) |
| DB600-250-120 | 6" | 152 | 6.7 | 170 | 150 | 10 | 450 | 31 | 29 | 22 | 559 | 5.4 | 8.04 | 120 in (3.05 m) |
| DB800-250-25 | 8" | 203 | 8.8 | 224 | 150 | 10 | 450 | 31 | 29 | 30 | 762 | 7.9 | 11.76 | 25 in (0.64 m) |
| DB800-250-32 | 8" | 203 | 8.8 | 224 | 150 | 10 | 450 | 31 | 29 | 30 | 762 | 7.9 | 11.76 | 32 in (0.81 m) |
| DB800-250-36 | 8" | 203 | 8.8 | 224 | 150 | 10 | 450 | 31 | 29 | 30 | 762 | 7.9 | 11.76 | 36 in (0.91 m) |
| DB800-250-54 | 8" | 203 | 8.8 | 224 | 150 | 10 | 450 | 31 | 29 | 30 | 762 | 7.9 | 11.76 | 54 in (1.37 m) |
| DB800-250-57 | 8" | 203 | 8.8 | 224 | 150 | 10 | 450 | 31 | 29 | 30 | 762 | 7.9 | 11.76 | 57 in (1.45 m) |
| DB800-250-60 | 8" | 203 | 8.8 | 224 | 150 | 10 | 450 | 31 | 29 | 30 | 762 | 7.9 | 11.76 | 60 in (1.52 m) |
| DB800-250-62 | 8" | 203 | 8.8 | 224 | 150 | 10 | 450 | 31 | 29 | 30 | 762 | 7.9 | 11.76 | 62 in (1.57 m) |
| DB800-250-66 | 8" | 203 | 8.8 | 224 | 150 | 10 | 450 | 31 | 29 | 30 | 762 | 7.9 | 11.76 | 66 in (1.68 m) |
| DB800-250-102 | 8" | 203 | 8.8 | 224 | 150 | 10 | 450 | 31 | 29 | 30 | 762 | 7.9 | 11.76 | 102 in (2.59 m) |
| DB800-250-127 | 8" | 203 | 8.8 | 224 | 150 | 10 | 450 | 31 | 29 | 30 | 762 | 7.9 | 11.76 | 127 in (3.23 m) |
| DB1000-250-120 | 10" | 254 | 11.11 | 282 | 150 | 10 | 450 | 31 | 29 | 30 | 762 | 10.5 | 15.63 | 120 in (3.05 m) |
| DB1200-250-120 | 12" | 305 | 13.5 | 343 | 150 | 10 | 450 | 31 | 29 | 30 | 762 | 12.5 | 18.6 | 120 in (3.05 m) |
Part Number | Nominal ID (Display) | OD (Inches) | Working Pressure (PSI) | Burst Pressure (PSI) | Bend Radius (Inches) | Weight (lbs/ft) | Standard Coil Length (ft) | Vacuum (in.Hg) |
|---|---|---|---|---|---|---|---|---|
DB400-187-100 | 4" | 4.87 | 150 | 450 | 15 | 4.6 | 29 | |
DB600-250-100 | 6" | 6.7 | 150 | 450 | 22 | 5.4 | 29 | |
DB600-250-50 | 6" | 6.7 | 150 | 450 | 22 | 5.4 | 29 | |
DB600-250-120 | 6" | 6.7 | 150 | 450 | 22 | 5.4 | 29 | |
DB800-250-25 | 8" | 8.8 | 150 | 450 | 30 | 7.9 | 29 | |
DB800-250-32 | 8" | 8.8 | 150 | 450 | 30 | 7.9 | 29 | |
DB800-250-36 | 8" | 8.8 | 150 | 450 | 30 | 7.9 | 29 | |
DB800-250-54 | 8" | 8.8 | 150 | 450 | 30 | 7.9 | 29 | |
DB800-250-57 | 8" | 8.8 | 150 | 450 | 30 | 7.9 | 29 | |
DB800-250-60 | 8" | 8.8 | 150 | 450 | 30 | 7.9 | 29 | |
DB800-250-62 | 8" | 8.8 | 150 | 450 | 30 | 7.9 | 29 | |
DB800-250-66 | 8" | 8.8 | 150 | 450 | 30 | 7.9 | 29 | |
DB800-250-102 | 8" | 8.8 | 150 | 450 | 30 | 7.9 | 29 | |
DB800-250-127 | 8" | 8.8 | 150 | 450 | 30 | 7.9 | 29 | |
DB1000-250-120 | 10" | 11.11 | 150 | 450 | 30 | 10.5 | 29 | |
DB1200-250-120 | 12" | 13.5 | 150 | 450 | 30 | 12.5 | 29 |
