Yellow Steel Wire Air Hose

Mandrel-built high-pressure air hose with steel-wire reinforcement, for heavy-duty service in mining, rock drilling and oil industries.

CONSTRUCTION

Mandrel-built nitrile air hose

TUBE

Black Nitrile rubber blended for oil mist

REINFORCEMENT

High strength steel wire reinforced

COVER

Yellow, smooth surface, fabric impression, weather and abrasion resistant

AT A GLANCE

ID Range:

1½" – 4" (38 mm – 102 mm)

Working Pressure:

450–600 PSI by size

Temp Range:

-40°F/+248°F (-40°C /+120°C)

Best For:

Mining, rock drilling and oil industries

Request a Quote

SPECIFICATION

Sizes & ordering data

Part Number	ID		OD		Working Pressure		Burst Pressure		Bend Radius		Coil Length
Part Number	in	mm	in	mm	PSI	bar	PSI	bar	in	mm	ft	m
YSAH-150-600	1½"	38	1.93	49	600	41	1800	124	18	457	200	61
YSAH-200-600	2"	51	2.6	66	600	41	1800	124	22	559	200	61
YSAH-300-525	3"	76	3.66	93	525	36	1575	109	33.1	841	200	61
YSAH-400-450	4"	102	4.72	120	450	31	1350	93	44	1118	200	61

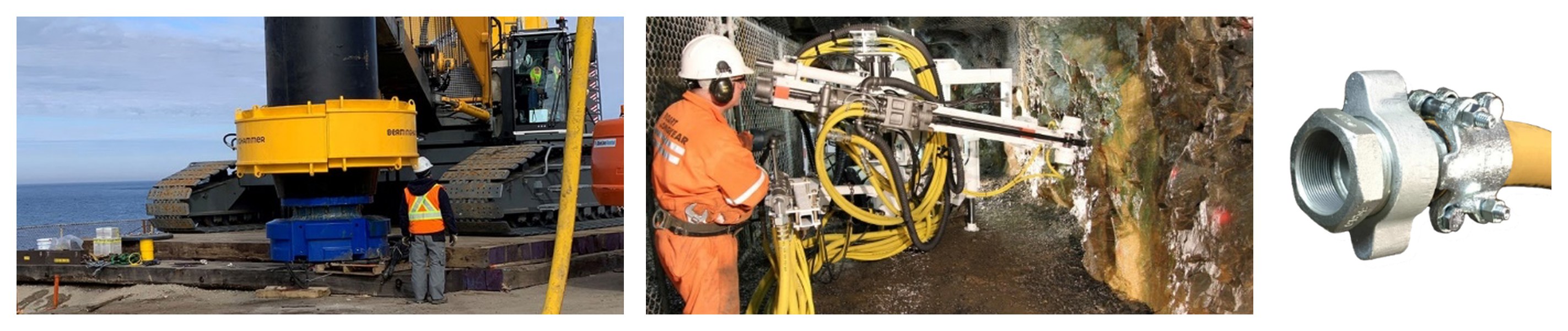

PARAGON yellow steel wire air hose feeding a drilling rig, on an underground drill rig, and a hose end fitted with a threaded steel coupling and safety clamp

Part Number	Nominal ID (Display)	OD (Inches)	Working Pressure (PSI)	Burst Pressure (PSI)	Bend Radius (Inches)	Standard Coil Length (ft)
YSAH-150-600	1½"	1.93	600	1800	18	200
YSAH-200-600	2"	2.6	600	1800	22	200
YSAH-300-525	3"	3.66	525	1575	33.1	200
YSAH-400-450	4"	4.72	450	1350	44	200

Download Spec Sheet
