Yellow Lay Flat Air Hose

Seven sizes from ¾″ to 6″, rated 300 PSI at ¾″ down to 85 PSI at 6″, with a 3:1 burst margin, in 300 ft coils, to −20 °F

CONSTRUCTION

PVC/nitrile lay-flat air hose

TUBE

Yellow PVC/Nitrile material with a good abrasion, chemical and UV resistance

REINFORCEMENT

High tensile polyester yarn, weave pattern to avoid kinking and snaking

COVER

Yellow

AT A GLANCE

ID Range:

¾" – 6" (19 mm – 152 mm)

Working Pressure:

85–300 PSI by size

Temp Range:

-20°F/+176°F (-29°C /+80°C)

Best For:

Air compressors, agriculture irrigation, drainage and watering, mining and dewatering, high-pressure liquid pumping, dry material discharge, cable covering, flotation booms

Request a Quote

SPECIFICATION

Sizes & ordering data

Part Number	ID		Working Pressure		Burst Pressure		Weight		Coil Length
Part Number	in	mm	PSI	bar	PSI	bar	lb/ft	kg/m	ft	m
YFAH-075-300 *	¾"	19	300	21	900	62	0.23	0.34	300	91.4
YFAH-100-300 *	1"	25	300	21	900	62	0.32	0.48	300	91.4
YFAH-150-225 *	1½"	38	255	18	765	53	0.41	0.61	300	91.4
YFAH-200-200 *	2"	51	200	14	600	41	0.52	0.77	300	91.4
YFAH-300-150	3"	76	150	10	450	31	0.76	1.13	300	91.4
YFAH-400-150	4"	102	150	10	450	31	1.21	1.8	300	91.4
YFAH-600-85	6"	152	85	6	255	18	1.62	2.41	300	91.4

* Longer length available on request

Available with universal couplings on request.

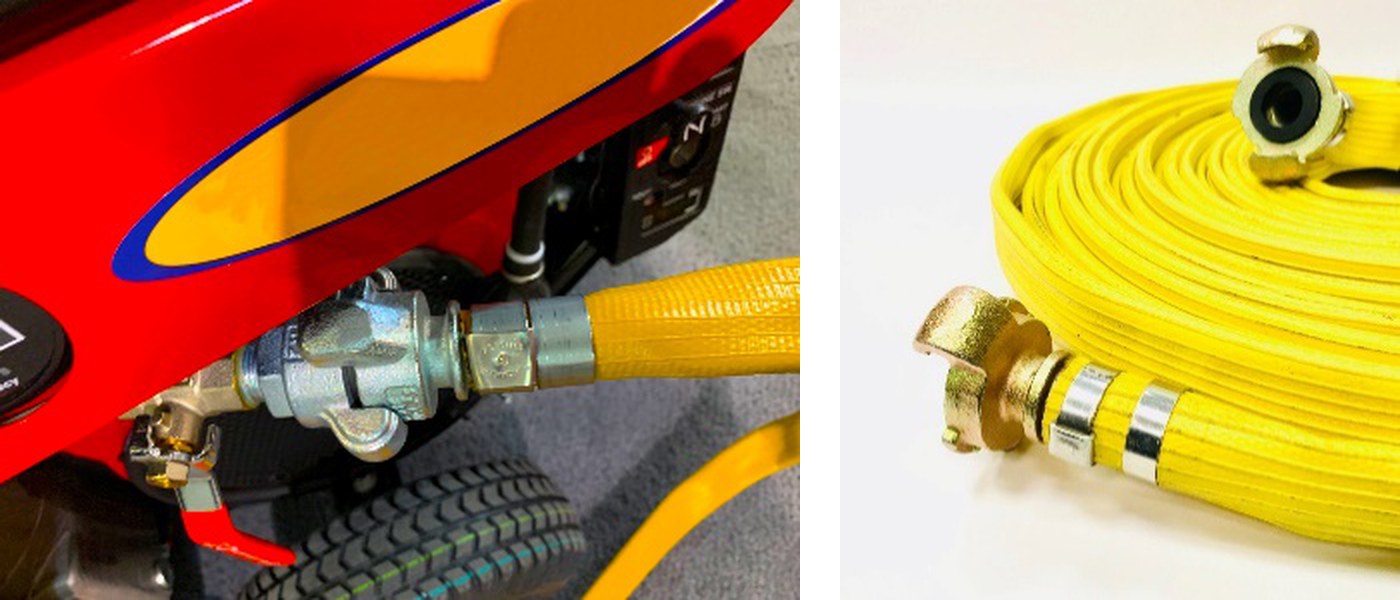

PARAGON yellow lay-flat air hose coupled to equipment with a universal coupling, and a coil with universal couplings fitted

Part Number	Nominal ID (Display)	Working Pressure (PSI)	Burst Pressure (PSI)	Weight (lbs/ft)	Standard Coil Length (ft)
YFAH-075-300 *	¾"	300	900	0.23	300
YFAH-100-300 *	1"	300	900	0.32	300
YFAH-150-225 *	1½"	255	765	0.41	300
YFAH-200-200 *	2"	200	600	0.52	300
YFAH-300-150	3"	150	450	0.76	300
YFAH-400-150	4"	150	450	1.21	300
YFAH-600-85	6"	85	255	1.62	300

Download Spec Sheet
