PRODUCTS / INDUSTRIAL HOSE / WATER HOSE / WATER SUCTION & DISCHARGE HOSE 150 PSI
APPLICATION

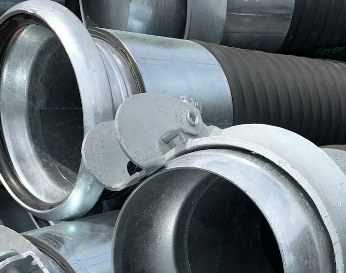

Water Suction & Discharge Hose 150 PSI
Rubber water suction and discharge hose for irrigation, dewatering and industrial wastewater — 150 PSI
PARAGON Water Suction & Discharge Hose 150 PSI — Water suction and discharge hose for water and non-corrosive fluids. Suitable for irrigation systems, agricultural vehicles, dewatering on construction projects, and industrial wastewater.
Tube: Black smooth rubber. Reinforcement: High tensile textile plies and steel helix wire. Cover: Black, smooth finish rubber, weather and abrasion resistant with fabric impression.
Hard-to-find specialty sizes sourced direct. Request a quote.
CONSTRUCTION
High-tensile textile plies with steel helix wire
TUBE
Black smooth rubber
REINFORCEMENT
High tensile textile plies and steel helix wire
COVER
Black, smooth finish rubber, weather and abrasion resistant with fabric impression
SPECIFICATION
Sizes & ordering data
 Part Number |  ID |  OD |  Working Pressure |  Bend Radius |  Weight |  Coil Length | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | PSI | bar | in | mm | lb/ft | kg/m | ft | m | |
| RWSH-075-150 | ¾" | 19 | 1.14 | 29 | 150 | 10 | 3.75 | 95 | 0.3 | 0.45 | 200 | 61 |
| RWSH-100-150 | 1" | 25 | 1.38 | 35 | 150 | 10 | 4.9 | 124 | 0.44 | 0.65 | 200 | 61 |
| RWSH-125-150 | 1¼" | 32 | 1.65 | 42 | 150 | 10 | 6.3 | 160 | 0.54 | 0.8 | 200 | 61 |
| RWSH-150-150 | 1½" | 38 | 1.89 | 48 | 150 | 10 | 7.5 | 190 | 0.64 | 0.95 | 200 | 61 |
| RWSH-200-150 | 2" | 51 | 2.4 | 61 | 150 | 10 | 10.1 | 257 | 0.84 | 1.25 | 200 | 61 |
| RWSH-250-150 | 2½" | 64 | 2.91 | 74 | 150 | 10 | 12.4 | 315 | 1.11 | 1.65 | 200 | 61 |
| RWSH-300-150 | 3" | 76 | 3.46 | 88 | 150 | 10 | 14.85 | 377 | 1.48 | 2.2 | 200 | 61 |
| RWSH-400-150 | 4" | 102 | 4.49 | 114 | 150 | 10 | 19.5 | 495 | 1.98 | 2.95 | 200 | 61 |
| RWSH-500-150 | 5" | 127 | 5.63 | 143 | 150 | 10 | 24.5 | 622 | 3.29 | 4.9 | 100 | 30.5 |
| RWSH-600-150 | 6" | 152 | 6.61 | 168 | 150 | 10 | 30.2 | 767 | 4.37 | 6.5 | 100 | 30.5 |
| RWSH-800-150 | 8" | 203 | 8.86 | 225 | 150 | 10 | 40 | 1016 | 8.06 | 11.99 | 100 | 30.5 |
| RWSH-1000-150 | 10" | 254 | 10.98 | 279 | 150 | 10 | 50 | 1270 | 11.76 | 17.5 | 100 | 30.5 |
| RWSH-1200-150 | 12" | 305 | 13.03 | 331 | 150 | 10 | 60 | 1524 | 15.46 | 23.01 | 100 | 30.5 |
Part Number | Nominal ID (Display) | OD (Inches) | Working Pressure (PSI) | Burst Pressure (PSI) | Bend Radius (Inches) | Weight (lbs/ft) | Standard Coil Length (ft) | Vacuum (in.Hg) |
|---|---|---|---|---|---|---|---|---|
RWSH-075-150 | ¾" | 1.14 | 150 | 3.75 | 0.3 | 200 | ||
RWSH-100-150 | 1" | 1.38 | 150 | 4.9 | 0.44 | 200 | ||
RWSH-125-150 | 1¼" | 1.65 | 150 | 6.3 | 0.54 | 200 | ||
RWSH-150-150 | 1½" | 1.89 | 150 | 7.5 | 0.64 | 200 | ||
RWSH-200-150 | 2" | 2.4 | 150 | 10.1 | 0.84 | 200 | ||
RWSH-250-150 | 2½" | 2.91 | 150 | 12.4 | 1.11 | 200 | ||
RWSH-300-150 | 3" | 3.46 | 150 | 14.85 | 1.48 | 200 | ||
RWSH-400-150 | 4" | 4.49 | 150 | 19.5 | 1.98 | 200 | ||
RWSH-500-150 | 5" | 5.63 | 150 | 24.5 | 3.29 | 100 | ||
RWSH-600-150 | 6" | 6.61 | 150 | 30.2 | 4.37 | 100 | ||
RWSH-800-150 | 8" | 8.86 | 150 | 40 | 8.06 | 100 | ||
RWSH-1000-150 | 10" | 10.98 | 150 | 50 | 11.76 | 100 | ||
RWSH-1200-150 | 12" | 13.03 | 150 | 60 | 15.46 | 100 |
