PRODUCTS / INDUSTRIAL HOSE / VACUUM TRUCK HOSE / TIGER TAIL HOSE PROTECTOR
APPLICATION
Tiger Tail Hose Protector
Polyethylene hose-protection sleeve for sewer-cleaning jetter hoses — extends service life; also flexible vacuum PE ducting for liquid suction

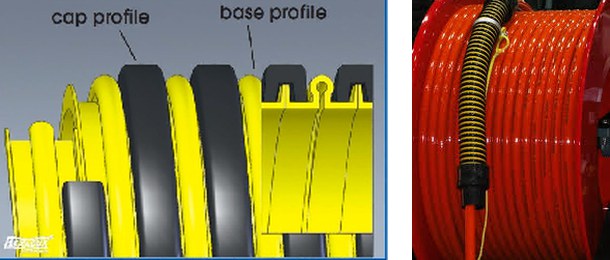

PARAGON Tiger Tail is a corrugated polyethylene hose-protection sleeve designed specifically to shield sewer-cleaning jetter hoses from abrasive wear against manhole rims, road surfaces, and pipe entries. Significantly extends jetter hose service life. Includes a 20 ft heavy-duty rope for securing the protector in place.
Doubles as a flexible vacuum PE ducting hose for liquid suction in sanitary, sewer, and airport service — and for cleaning and suction of petroleum, cooking oil, chemical, and light-acid media.
Vacuum rating 0.95 bar. Operating range −40°F to +158°F. Stocked in three bulk sizes (2", 3", 4" ID, 65 ft / 20 m rolls) and two pre-assembled configurations (2", 3" with 3' cuff ends).
AT A GLANCE
ID Range:
2" – 4" (51 mm – 102 mm)
Working Pressure:
Vacuum 0.95 bar
Temp Range:
−40°F to +158°F (−40°C to +70°C)
Best For:
Protecting sewer-cleaning jetter hoses from abrasive wear; flexible vacuum PE ducting for liquid suction in sanitary, sewer, and airport service; cleaning and suction of petroleum, cooking oil, chemical, and light-acid media
CONSTRUCTION
Corrugated polyethylene hose protector / PE vacuum ducting
TUBE
Polyethylene, yellow-black (single-extrusion construction)
REINFORCEMENT
Corrugated polyethylene wall (single-extrusion construction — no separate reinforcement layer)
COVER
Polyethylene, yellow-black (special colours on request)
SPECIFICATION
Sizes & ordering data
| Part Number | ID | OD (in) | Weight (lb/ft) | Coil (ft) |
|---|---|---|---|---|
| TTYH-200-LL | 2" | 3 | 0.64 | 65 |
| TTYH-300-LL | 3" | 3.78 | 0.95 | 65 |
| TTYH-400-LL | 4" | 4.8 | 1.22 | 65 |
| TTYH-200-3-CF | 2" (cuff-end assembly) | 3 | — | — |
| TTYH-300-3-CF | 3" (cuff-end assembly) | 3.78 | — | — |
Cut / assembly lengths: 2" (cuff-end assembly): 3 ft pre-assembled with cuff ends · 3" (cuff-end assembly): 3 ft pre-assembled with cuff ends
Part Number | Nominal ID (Display) | OD (Inches) | Working Pressure (PSI) | Burst Pressure (PSI) | Bend Radius (Inches) | Weight (lbs/ft) | Standard Coil Length (ft) | Vacuum (in.Hg) |
|---|---|---|---|---|---|---|---|---|
TTYH-200-LL | 2" | 3 | 0.64 | 65 | ||||
TTYH-300-LL | 3" | 3.78 | 0.95 | 65 | ||||
TTYH-400-LL | 4" | 4.8 | 1.22 | 65 | ||||
TTYH-200-3-CF | 2" (cuff-end assembly) | 3 | ||||||
TTYH-300-3-CF | 3" (cuff-end assembly) | 3.78 |
