Lay Flat TPU Concrete & Mortar Hose 1233 PSI

Three builds: 4″, 5″, and a 4″ with a 5″-to-4″ reducer end. Rated 1233 PSI working and 2466 PSI burst. −40 °F to +158 °F, in lengths of 10 to 50 ft.

Lay-flat boom tip hose for ICF forms, columns and tall walls where space is at a minimum. Supplied with a heavy-duty Victaulic standard coupling. A third lighter than a traditional flexible boom hose, with anti-whip properties.

CONSTRUCTION

Extruded TPU lay-flat hose, cover bonded to lining

TUBE

Extruded thermoplastic polyether based polyurethane (TPU)

REINFORCEMENT

Circular woven aramid fiber, “extra-strong yarn”

COVER

Extruded TPU Yellow and orange cover, bonded to lining

Lay Flat TPU Concrete & Mortar Hose 1233 PSI

AT A GLANCE

ID Range:

4" – 5" (102 mm – 127 mm)

Working Pressure:

1233 PSI

Temp Range:

-40°F/+158°F (-40°C /+70°C)

Best For:

Boom tip placement of concrete and mortar: ICF forms, columns, tall walls

Request a Quote

SPECIFICATION

Sizes & ordering data

Part Number	ID		Working Pressure		Burst Pressure		Wall		Tensile		Weight		Length
Part Number	in	mm	PSI	bar	PSI	bar	in	mm	klbs	t	lb/ft	kg/m	Length
OPUC-400-1233-L	4"	102	1233	85	2466	170	0.175	4.4	172	78	1.5	2.23	10, 25, 50 ft
YPUC-500-1233-LL	5"	127	1233	85	2466	170	0.175	4.4	183	83	1.65	2.46	10, 25, 50 ft
OPUC-5-4-1233-LL	4" (5"–4" reducer end)	102	1233	85	2466	170	0.175	4.4	172	78	1.5	2.23	10, 12, 15, 20, 25 ft

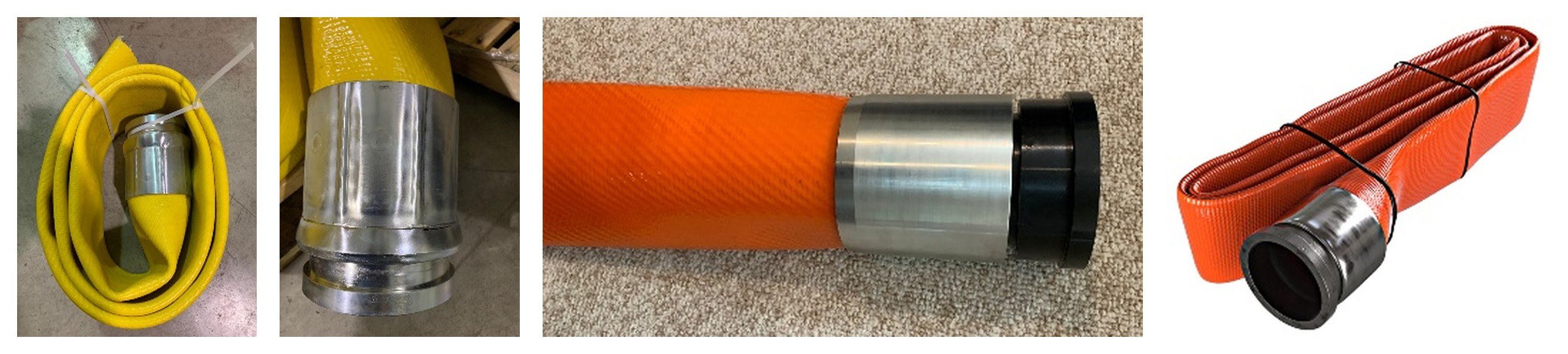

PARAGON lay-flat TPU concrete and mortar hose: a yellow coil with its coupling, the coupling close up, an orange hose end with coupling, and an orange coil

Part Number	Nominal ID (Display)	Working Pressure (PSI)	Burst Pressure (PSI)	Weight (lbs/ft)	Standard Coil Length (ft)
OPUC-400-1233-L	4"	1233	2466	1.5	null
YPUC-500-1233-LL	5"	1233	2466	1.65	null
OPUC-5-4-1233-LL	4" (5"–4" reducer end)	1233	2466	1.5

Download Spec Sheet
