Jackhammer Air Compressor Hose 300 PSI

The ¾″ and 1″ sizes are also available in 100 ft coils; the ½″ is supplied in 50 ft only.

CONSTRUCTION

Black, oil-mist resistance smooth rubber

High tensile synthetic textile plies

Yellow, smooth rubber, weather and abrasion resistant

ID Range:

½" – 1" (13 mm – 25 mm)

Working Pressure:

300 PSI

Temp Range:

-31°F/+176°F (-35°C /+80°C)

Best For:

Jack hammer and contractor use, and wash down in construction

SPECIFICATION

Sizes & ordering data

Part Number	ID		OD		Working Pressure		Burst Pressure		Weight		Coil Length
Part Number	in	mm	in	mm	PSI	bar	PSI	bar	lb/ft	kg/m	ft	m
CAYS-050-300	½"	13	0.88	22	300	21	900	62	0.22	0.33	50	15.2
CAYS-075-300	¾"	19	1.15	29	300	21	900	62	0.37	0.55	50	15.2
CAYS-100-300	1"	25	1.42	36	300	21	900	62	0.5	0.74	50	15.2

Coupled assemblies

Supplied as a finished 50 ft assembly with universal couplings fitted.

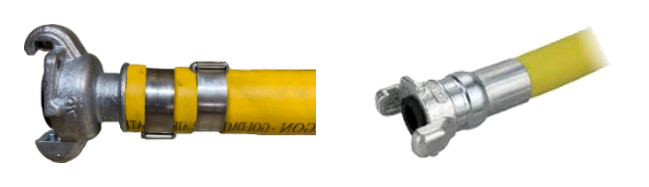

PARAGON jackhammer air compressor hose with universal couplings and twin clamps fitted to the hose end

Part Number	ID		OD		Working Pressure		Burst Pressure		Weight		Coil Length
Part Number	in	mm	in	mm	PSI	bar	PSI	bar	lb/ft	kg/m	ft	m
CAYS-075-300-50'-UC	¾"	19	1.15	29	300	21	900	62	0.37	0.55	50	15.2
CAYS-100-300-50'-UC	1"	25	1.42	36	300	21	900	62	0.5	0.74	50	15.2

Part Number	Nominal ID (Display)	OD (Inches)	Working Pressure (PSI)	Burst Pressure (PSI)	Weight (lbs/ft)	Standard Coil Length (ft)
CAYS-050-300	½"	0.88	300	900	0.22	50
CAYS-075-300	¾"	1.15	300	900	0.37	50
CAYS-100-300	1"	1.42	300	900	0.5	50
CAYS-075-300-50'-UC	¾"	1.15	300	900	0.37	50
CAYS-100-300-50'-UC	1"	1.42	300	900	0.5	50

Hard-to-find specialty sizes sourced direct.
