PRODUCTS / INDUSTRIAL HOSE / AIR HOSE / HIGH PRESSURE LAY FLAT COMPRESSED AIR HOSE
APPLICATION

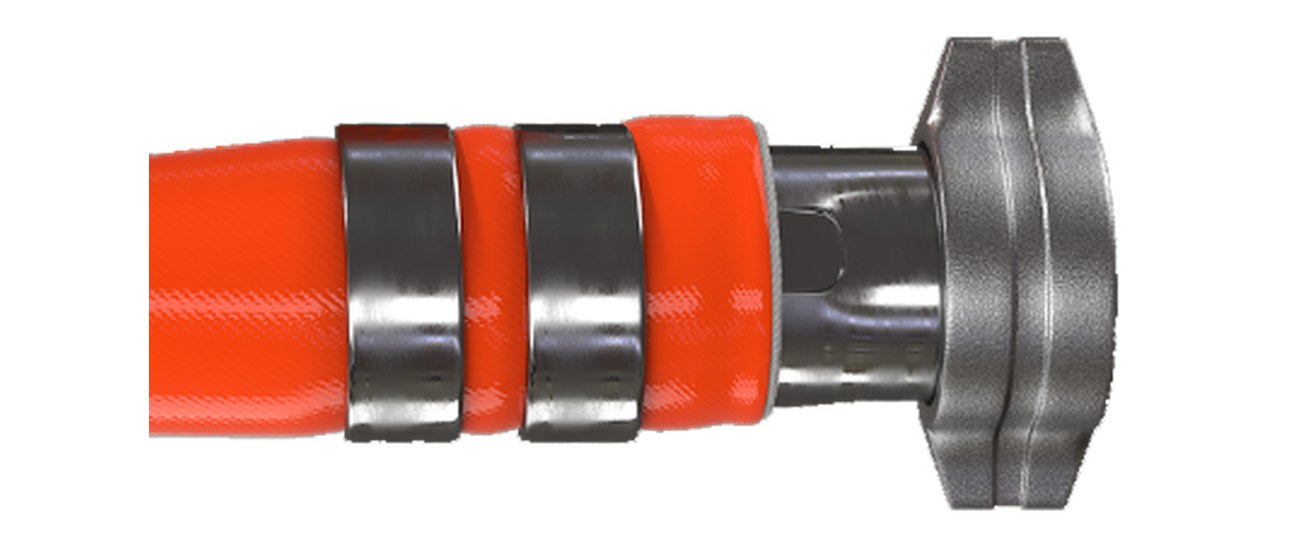

High Pressure Lay Flat Compressed Air Hose
Lightweight double-jacket TPU lay-flat hose for compressed air, with a high pressure rating for its wall thickness. It carries a 4:1 burst-to-working safety factor, the minimum ISO 7751:1991 sets for compressed air; the 2″ coupling is designed and approved by Atlas Copco, and a whipcheck cable is recommended.
CONSTRUCTION
Double-jacket TPU lay-flat air hose
TUBE
Thermoplastic polyurethane (TPU) lining, abrasion- and oil-resistant
REINFORCEMENT
High tensile polyester weaves, double jacket
COVER
Thermoplastic polyurethane (TPU), abrasion- and oil-resistant
SPECIFICATION
Sizes & ordering data
 Part Number |  ID |  Working Pressure |  Burst Pressure |  Wall |  Tensile |  Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | PSI | bar | PSI | bar | in | mm | klbs | t | lb/ft | kg/m | |
| OLMH-200-633 | 2" | 51 | 633 | 44 | 2535 | 175 | 0.17 | 4.3 | 31.7 | 14.4 | 0.55 | 0.82 |
| OLMH-300-435 | 3" | 76 | 435 | 30 | 1740 | 120 | 0.18 | 4.6 | 46.6 | 21.1 | 0.83 | 1.24 |
Note: minimum safety factor BP/WP is 4:1 (25%) for compressed air (ISO 7751:1991).
Coupling 2″ designed and approved by Atlas Copco.
Whipcheck cable recommended for safety.
Part Number | Nominal ID (Display) | OD (Inches) | Working Pressure (PSI) | Burst Pressure (PSI) | Bend Radius (Inches) | Weight (lbs/ft) | Standard Coil Length (ft) | Vacuum (in.Hg) |
|---|---|---|---|---|---|---|---|---|
OLMH-200-633 | 2" | 633 | 2535 | 0.55 | ||||
OLMH-300-435 | 3" | 435 | 1740 | 0.83 |
